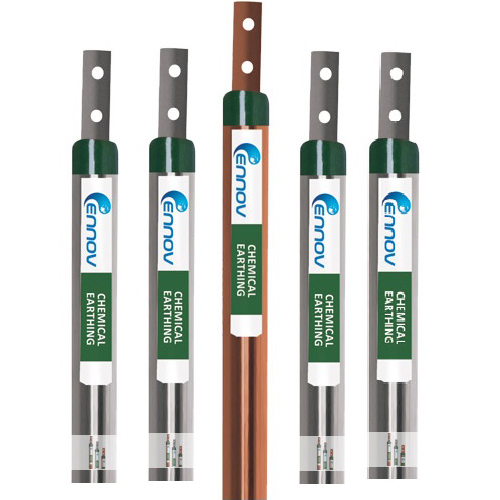

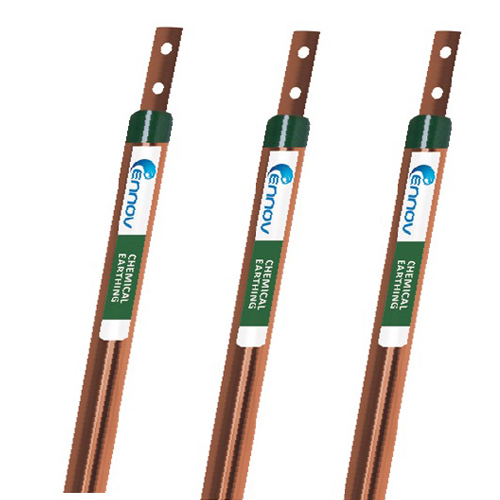

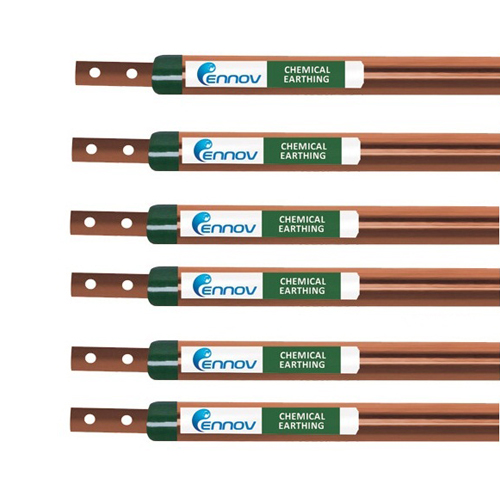

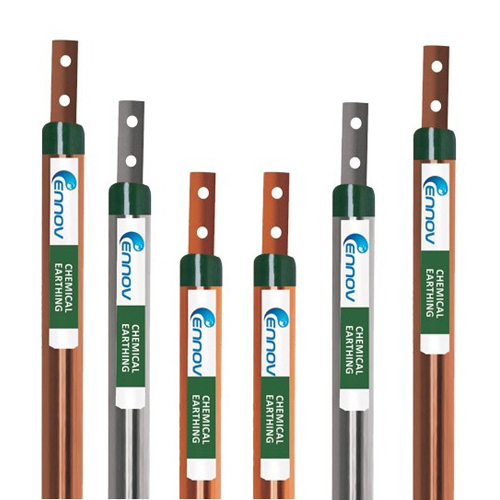

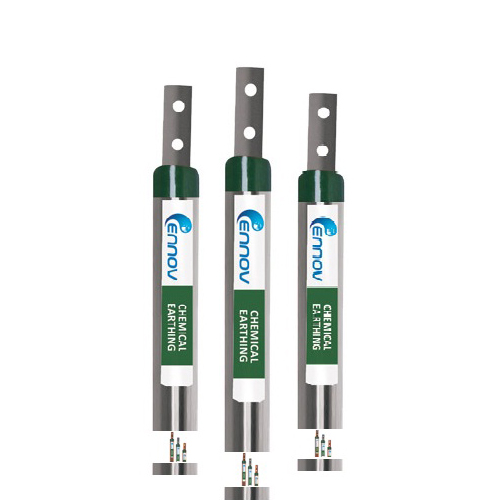

In this technology, one strip and one pipe are used. The strip (main conductor) is placed centrically inside the pipe (outer pipe) and The space inside the electrode is tightly filled with a crystalline conductive mixture (CCM) and then sealed. The crystalline mixture contains natural elements and compounds, which are high conductive as well as anti corrosive.
| S. NO. | MODEL NO. | DIMENSIONS (mm) | ||
| OUTER PIPE | INNER STRIP | TERMINAL | ||
| 1 | ELE-250 SP | 2000 x 50 | 2000 x 32 | 100 x 32 x 6 |
| 2 | ELE-280 SP | 2000 x 80 | 2000 x 50 | 100 x 50 x 6 |
| 3 | ELE-350 SP | 3000 x 50 | 3000 x 32 | 100 x 32 x 6 |
| 4 | ELE-380 SP | 3000 x 80 | 2000 x 50 | 100 x 50 x 6 |
Above mentioned electrode comes in 3 different MOC – GI, Pure Copper & Copper Bonded. Sizes can be customized as per customer’s requirement.
